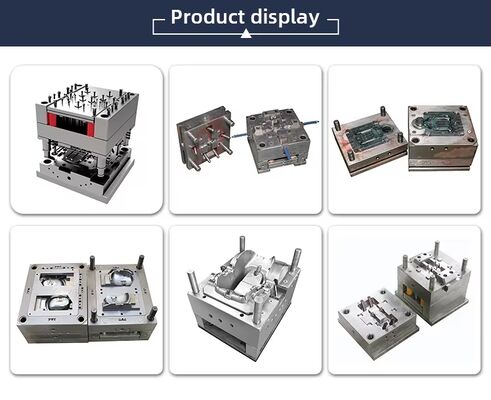

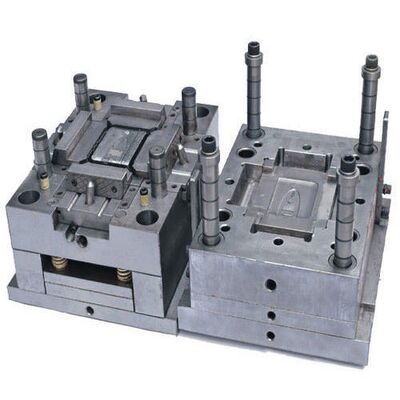

Custom High Quality Mold Making Service Pressure Gravity Metal Aluminum Alloy Die Casting CNC Mold Moulds

This custom high quality mold making service specializes in producing both pressure and gravity die casting moulds for aluminum alloy components. Using advanced CNC machining and EDM processes, we craft moulds that accommodate either high-pressure injection or gravity-fed permanent mold casting methods. For pressure die casting, our tools feature hardened steel cavities, precision runners, and efficient cooling circuits to withstand rapid cycles and high clamping forces. For gravity die casting, we design robust, heat-resistant molds with controlled venting and smooth taper angles for easy part release. Whether your production requires the speed of pressure casting or the density of gravity casting, our CNC-machined moulds deliver consistent dimensional accuracy, long service life, and excellent surface finish for aluminum alloy parts.

Specification
Using Hardness >HRC45
with Die Casting Process
Machining Tolerance
for Automobile Spare Parts
for Machinery Part
Smooth Surface Finish Specification

Features

• Dual Process Capability – One mold design service covers both high-pressure injection casting and gravity permanent mold casting, tailored to your production method.
• CNC Precision Machining – 5-axis CNC and wire EDM ensure tight tolerances down to ±0.01mm on cavity surfaces, cores, and sliders.
• Aluminum Alloy Optimized – Moulds engineered specifically for aluminum alloys, with proper draft and venting for each alloy’s flow characteristics.
• End‑to‑End Service – From part design review, flow simulation, and mould manufacturing to sample casting and process tuning, all under one roof.

Our Advantages
1. We are the biggest lost foam mould manufacturer in China, we focus on high challenge lost foam mould and we have large gantry machining centers,30 sets imported high speed machining center,more than 40 sets general machine tool equipment;
2. We have 36 senior mould designers, to ensure reasonable / safety / high efficiency mould design and ensure the fast mould delivery and rational mould structure, make the process more safer and the production efficiency more higher;
3. We using numerical control machine tool to manufacture the mould cavities, to ensure a even thickness ;
4. We using ZL104 Aluminium to casting the mould, to manufacture a high strength mould;
5. For the big mould, we using Ø22*1 copper tube as cooling pipe, with water spray system, to get a nice cooling effect;
6. We Have (TEF10N) coating on the mould surface, it can reduce the friction, anti water/static electricity/acid-base/high-temperature, with this we can ensure the pattern has smooth surface without distrotion, and easy to demould;
7. All the screws we using stainless steel screw, easy to disassemble during maintenance;
8. For the big mould chest, we using 18-20mm thick wrought aluminium plate, to offer high strenght cavity.

Product Process

The research and development center is consist of 36 designers who are expert in 3D design, mold design, NC programming craftsmen, lost foam casting craftsmen and so on. We provide a full range of design and services for you. We discuss the mould process and confirm the scheme with your engineer together, this can guarantee the mould structure more reasonable more safety and more efficiency. We finish the product model and detection through reserve scan and 3D Coordinate Measuring technology to make sure each customer satisfy their mould.

Applications

1. Automotive Suspension Arms – Gravity die cast moulds for A356 aluminum control arms requiring high ductility and T6 heat treatability.

2. Pressure Cooker Bodies – High pressure die casting moulds for ADC12 lids and bases, demanding smooth surfaces and leak-proof threads.

3. LED Housing Heat Sinks – Fine‑finned enclosures cast via pressure die casting for rapid heat dissipation.

4. Industrial Gear Covers – Gravity cast enclosures for heavy machinery, where dimensional stability over large areas is essential.

5. Marine Hardware Components – Corrosion-resistant aluminum brackets and pulleys cast using either process, with moulds designed for salt‑spray durability.

Packing & Shipping

Dedicated Customer Support

Our customer support team is available to assist you with any questions or concerns regarding packing and shipping. From providing shipping quotes to resolving delivery issues, we’re here to ensure a smooth and hassle-free experience.

About Us

While leading the Chinese brand, Luoyang Liushi mould develop the international market positively, we export a large number of molds to the United States, India, Taiwan and other countries. We have become an international first-class lost foam mould supplier and we have manufactured mould for Germany's machine Teubert and American molding machine Vulcan.

We have lost foam casting process and gravity casting process. There are 2 automatic casting production lines of lost foam process, 1 production line of T6 heat treatment, 1 set EPS foaming machine, 2 sets 1000kg centralized melting furnaces, 6 sets 600kg graphite crucible furnaces, 1 set automatic HS - CXJ - 3200 high efficiency and energy-saving molding machine, 16 sets of other model white pattern molding machine, 1 set plain bumper with the same advanced performance as American Fukang brand, 1 set density equivalent meter, 1 set Fosco dusting machine; 2 sets Aluminum alloy gravity pouring and turning machine, 3 sets Coated sand core-making machine , 1 set X-ray flaw detection spectrometer, 1 set Metallographic analyzer, and more than 20 sets of other corollary equipment. Not only we can supply with Aluminum Alloy Castings , but also we can supply with machined finished parts. The capacity of Aluminum Alloy Gearbox Casing Castings can reach up to above 10000 tons every year. The reliable products passing rate of 95%.
