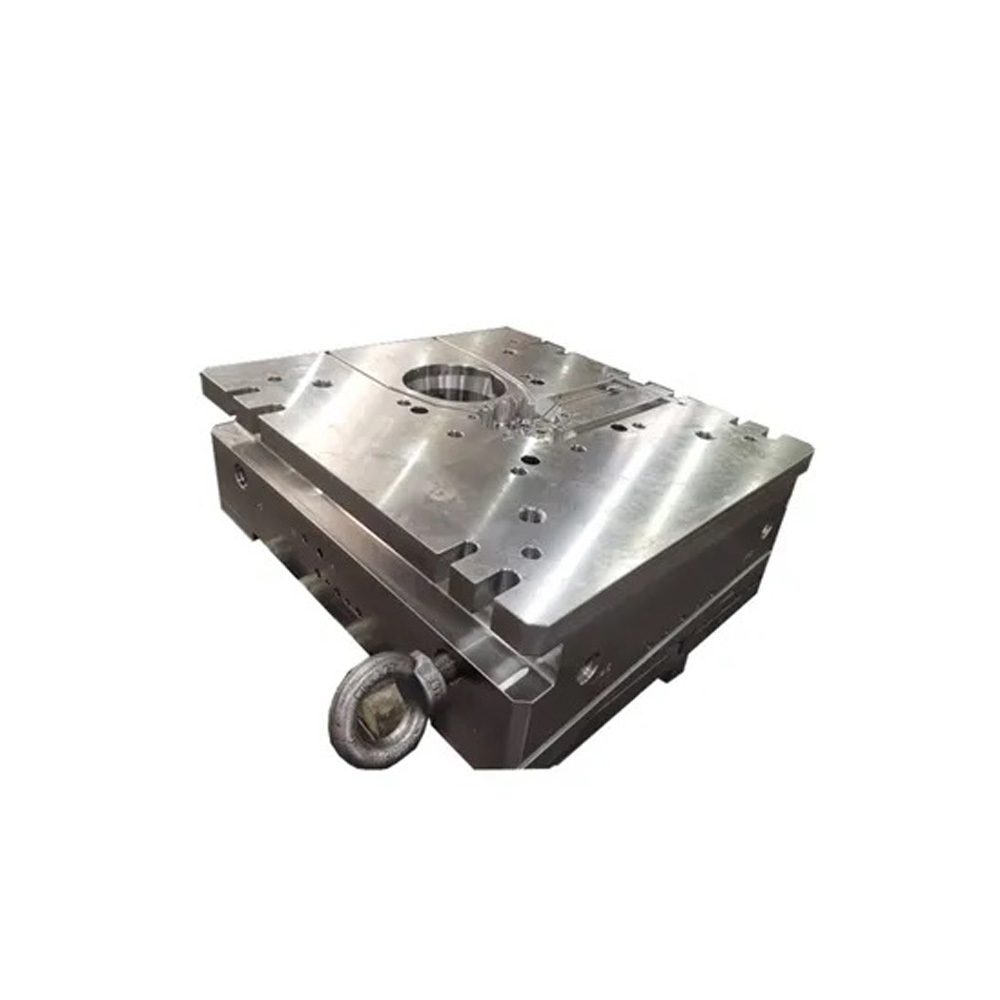

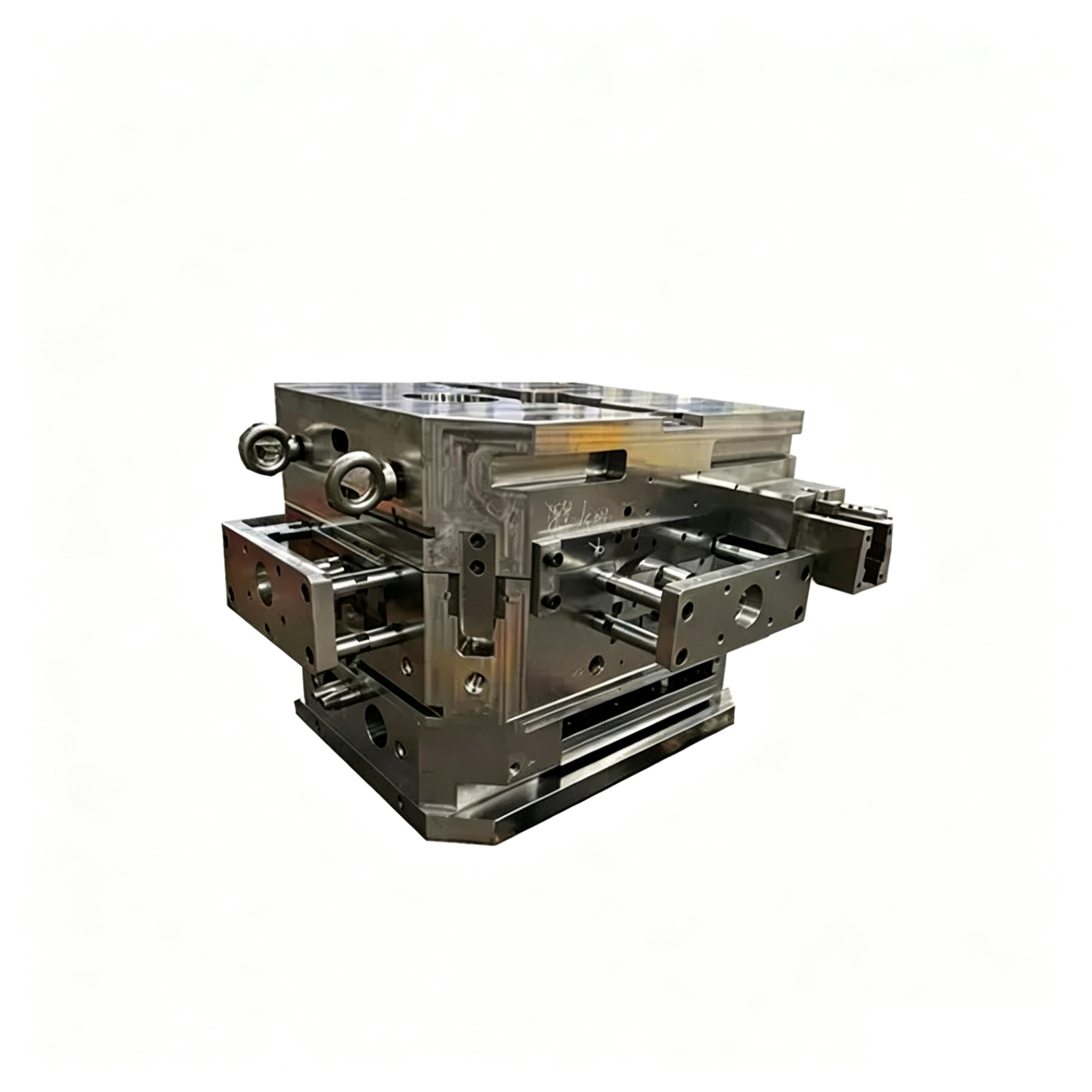

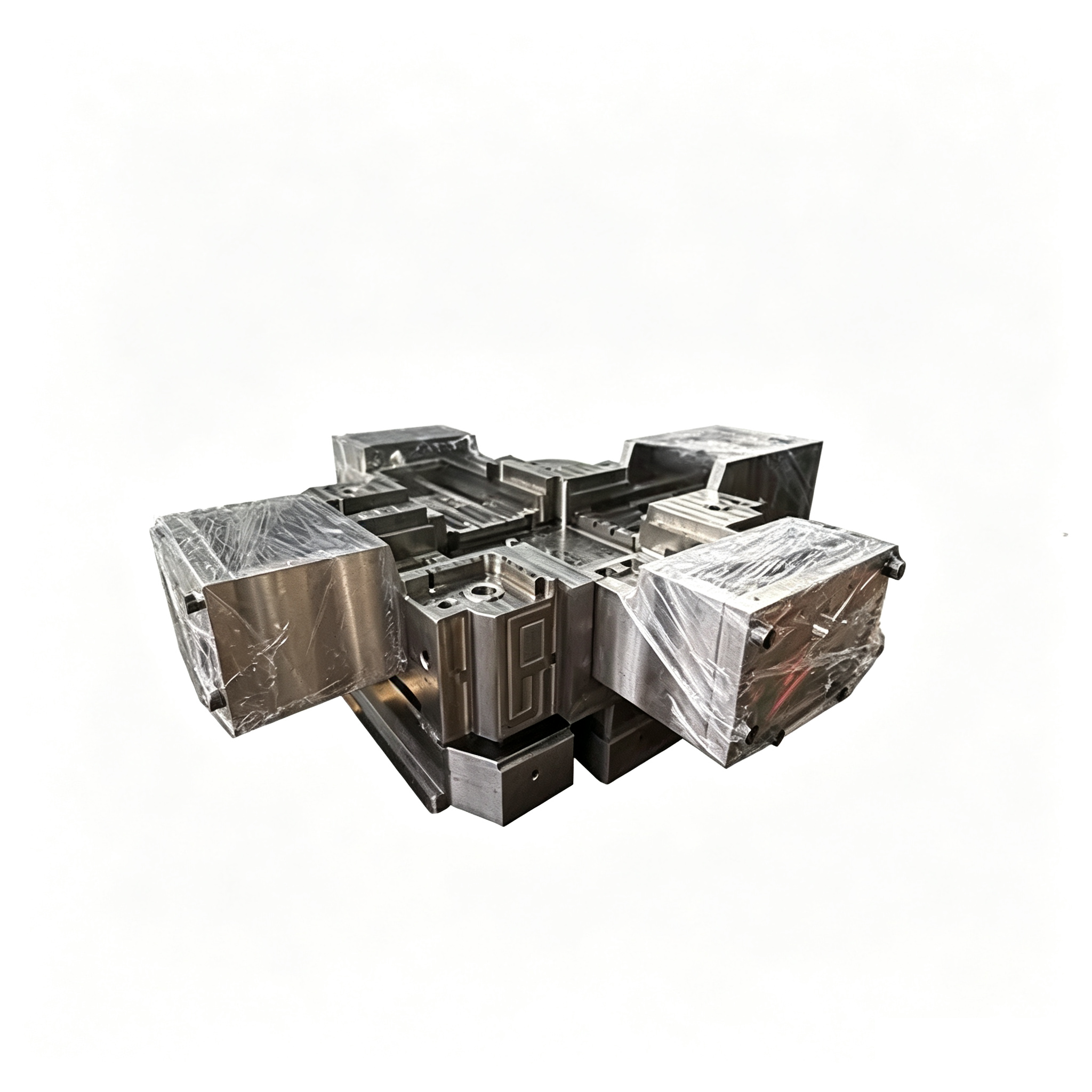

OEM Aluminium Die Casting Mold Base for HPDC LPDC Tooling Manufacturer
Détails sur le produit
| Nom du produit | L'aluminium lingotière de moulage mécanique sous pression | Personnalisé | Oui |
|---|---|---|---|
| Démoulier | Automatique | lingotière de bâti | Conception, fabrication, essai, modification et maintenance |
| Durée de vie du moule | 500 000 à 1 000 000 | Processus | Coulée + usinage (si nécessaire) + traitement de surface |
| Traitement de surface | souffle de tir | Épaisseur moyenne des parois | > 3 mm |
| Mettre en évidence | OEM aluminium die casting mold base,HPDC LPDC tooling manufacturer,aluminium die casting mould base |
||
Description de produit
Our OEM aluminium die casting mold base serves as the foundational tooling platform for high pressure die casting (HPDC) and low pressure die casting (LPDC) operations. The mold base is fabricated from hot-work tool steel grades selected for their resistance to thermal cycling and mechanical stress encountered in aluminium casting processes.
Aluminium Die Casting Mould Specifications
| Material Capability | Aluminum, Zinc, Brass, Iron, Carbon steel, Stainless steel, etc. |
|---|---|
| Surface Treatment | Shot blast, beat blast, powder coating, painting, zinc plating, hot dip galvanized, electrophoreses etc. |
| Product Weight | 0.01KG-50000KG |
| Casting Tolerance | CT3-CT9 |
| Trade Terms | FOB / CIF / EXW |
| Packing | Single polybag, bubble bags, wooden case, carton box etc. |
| Delivery Terms | 15-45 days for bulk |
Key Features
- Process-Specific Foundation Design - Configured for either HPDC or LPDC processes with plate thicknesses and guide pillar diameters matched to casting machine requirements.
- Interchangeable Insert Compatibility - Standard cavity pocket dimensions allow quick changeover between different part designs, reducing tooling lead time.
- Precision Guidance System - Ground guide pillars and bushings maintain consistent die closing alignment and parting line integrity.
- Cooling Circuit Integration - Pre-drilled cooling channels and manifold ports enable connection to external temperature control units.
- Ejection System Readiness - Machined ejector pin holes, return pin bores, and stop pin positions ready for direct installation.
Manufacturing Process
- Review part design, drawings and quality standards from clients
- Mould and tooling design & manufacturing
- Mould and tooling testing & sample confirmation
- Die casting raw castings
- Surface treatment: Trimming, deburring, polishing, cleaning, passivation & power coating
- Precision machining: CNC lathes, milling, drilling, grinding
- Full inspection
- Packing
- Delivery
Industry Applications
- Automotive Transmission Housings - Rigid support for HPDC tooling producing complex gearbox enclosures requiring consistent die alignment.
- Aluminium Alloy Wheel Molds - LPDC wheel production with cooling channel provisions for directional solidification control.
- Motorcycle Engine Covers - Precision guidance systems ensure reproducible part geometry for thin-wall clutch and crankcase covers.
- Heat Sink Arrays - Supports HPDC tooling for finned aluminium components with stable cavity insert mounting.
- Industrial Pump Bodies - Robust guide pillar systems provide alignment stability for pressure-tight valve and pump castings.
Packing & Shipping Assurance
- ✓100% Damage-Free Record - 10+ years of global shipments to 30+ countries
- ✓All-Inclusive Logistics - Export declarations, commercial invoices, packing lists, certificates of origin
- ✓24/7 Tracking - Real-time updates from factory to your dock
- ✓Insurance Coverage - Full-value protection against all risks (marine/land)
Company Profile
Luoyang Liushi Mould leads the Chinese brand while actively developing international markets, exporting molds to the United States, India, Taiwan and other countries. We have become an international first-class lost foam mould supplier and have manufactured molds for Germany's Teubert machines and American Vulcan molding equipment.
Our engineers have developed specialized cooling systems and gate designs that ensure complete cavity filling without defects. The moulds maintain exceptional dimensional stability even when producing parts with wall thicknesses below 1mm. Ideal for electronics housings, automotive lightweight components, and consumer products.
Quality & Service Advantages
Material Integrity
Tool steel sourced from established mills with material certificates. Controlled heat treatment with records available for customer review.
Pre-Machined Interface
Guide pillar holes, ejector pin bores, and cavity pockets machined to final dimensions, reducing secondary finishing work.
Dimensional Verification
Each mold base undergoes assembly and fitment inspection with documented guide pillar parallelism and die half alignment checks.
Custom Configuration Capability
Accept customer specifications for cooling circuits, ejector pin types, and support pillar placement with engineering approval drawings.
Technical Support
Engineering team assists with mold base selection, cooling layout recommendations, and guidance system optimization.
